F436 Non Standard Washer, Plain/Dacromet S45C/40CR For Wind Turbines
Standard:F436
Description:
The F436 washer is a standard flat washer used in structural applications. However, if you are looking for non-standard washers with the same finishes, such as plain, Dacromet, black oxide, zinc plated, or HDG (hot-dip galvanized), it is possible to find custom-made washers with those finishes.
Non-standard washers typically refer to washers that do not conform to standard sizes or dimensions. These washers are often made to order based on specific requirements. You can contact us to inquire about non-standard washers with your desired finishes.
When communicating with us, provide us with detailed specifications including the dimensions, material, finish, and quantity of the washers you need. We will be able to assist you in creating the non-standard washers with the desired finishes you are looking for.
| Material | 45#/40CR |
| Size | 1/4"-4" |
| Finish | Plain/black/ZINC/HDG/Dacromet/Mechanical Galvanized |
| Hardness | HV300/HRC35-45 |
| Marking | can be Customized |
| Application | Constrution/Wind turbines/railway line |
| Packing | Carton+ pallet; we can pack washers as your requirements |
| Terms | FOB+shanghai/ningbo |
| Delivery time | 30-70days |
Applications:
Non-standard F436 washers are utilized in a wide range of applications where off-the-shelf washers may not provide an ideal fit. These custom washers are commonly used in industries such as construction, manufacturing, infrastructure projects, and machinery assembly.
| size | Inner diameter(min) | Inner diameter(max) | Outside diameter (min) | Outside diameter (max) | Thickness (max) | nominal size | Thickness (min) |
| 1/4" | 7.137 | 7.925 | 15.087 | 15.875 | 2 | 1.65 | 1.2954 |
| 5/16" | 8.737 | 9.525 | 16.662 | 17.45 | 2 | 1.65 | 1.2954 |
| 3/8" | 10.312 | 11.1 | 19.837 | 20.65 | 2 | 1.65 | 1.2954 |
| 7/16" | 11.912 | 12.7 | 22.63 | 23.41 | 2 | 1.65 | 1.2954 |
| 1/2" | 13.487 | 14.3 | 26.187 | 27.787 | 4.95 | 3.47 | 2.4638 |
| 9/16" | 15.087 | 15.9 | 29.311 | 30.91 | 4.95 | 3.47 | 2.4638 |
| 5/8" | 17.45 | 18.26 | 32.537 | 34.137 | 4.95 | 3.8 | 3.0988 |
| 3/4" | 20.65 | 21.43 | 37 | 38.1 | 4.95 | 3.8 | 3.0988 |
| 7/8" | 23.8 | 24.587 | 43.662 | 45.237 | 4.95 | 3.97 | 3.4544 |
| 1" | 28.575 | 29.36 | 50.012 | 51.587 | 4.95 | 3.97 | 3.4544 |
| 1-1/8" | 31.75 | 32.537 | 56.362 | 57.937 | 4.95 | 3.97 | 3.4544 |
| 1-1/4" | 34.925 | 35.712 | 62.712 | 64.287 | 4.95 | 3.97 | 3.4544 |
| 1-3/8" | 38.10 | 39.7 | 68.25 | 70.63 | 4.95 | 3.97 | 3.4544 |
| 1-1/2" | 41.275 | 42.062 | 75.412 | 76.987 | 4.95 | 3.97 | 3.4544 |
| 1-5/8" | 44.45 | 46.01 | 80.99 | 84.11 | 7.1 | 6 | 4.53 |
| 1-3/4" | 47.63 | 49.23 | 84.12 | 87.29 | 7.1 | 6 | 4.53 |
| 1-7/8" | 50.80 | 52.36 | 87.34 | 90.46 | 7.1 | 6 | 4.53 |
| 2" | 53.98 | 55.58 | 93.65 | 96.81 | 7.1 | 6 | 4.53 |
| 2-1/4" | 60.33 | 61.93 | 100 | 103.16 | 8.62 | 7.3 | 6.1 |
| 2-1/2" | 66.68 | 68.28 | 112.7 | 115.86 | 8.62 | 7.3 | 6.1 |
| 2-3/4" | 73.03 | 74.63 | 125.4 | 128.56 | 8.62 | 7.3 | 6.1 |
| 3" | 79.38 | 80.98 | 138.1 | 142.82 | 8.62 | 7.3 | 6.1 |
| 3-1/4" | 85.73 | 88.9 | 149.23 | 155.52 | 8.62 | 7.3 | 6.1 |
| 3-1/2" | 92.08 | 95.25 | 161.93 | 168.22 | 8.62 | 7.3 | 6.1 |
| 3-3/4" | 98.43 | 101.6 | 174.63 | 180.92 | 8.62 | 7.3 | 6.1 |
| 4" | 104.78 | 107.95 | 187.33 | 193.62 | 8.62 | 7.3 | 6.1 |

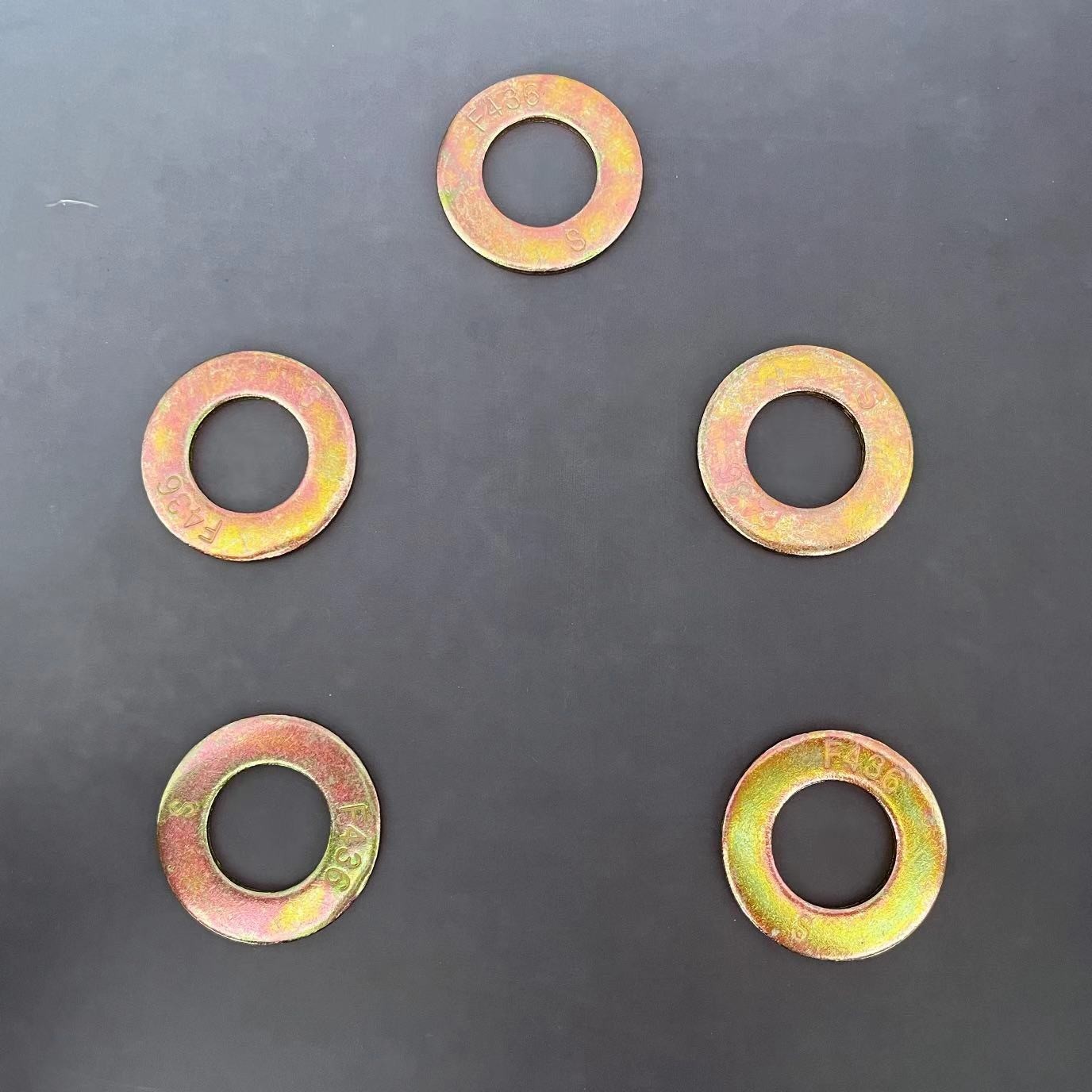

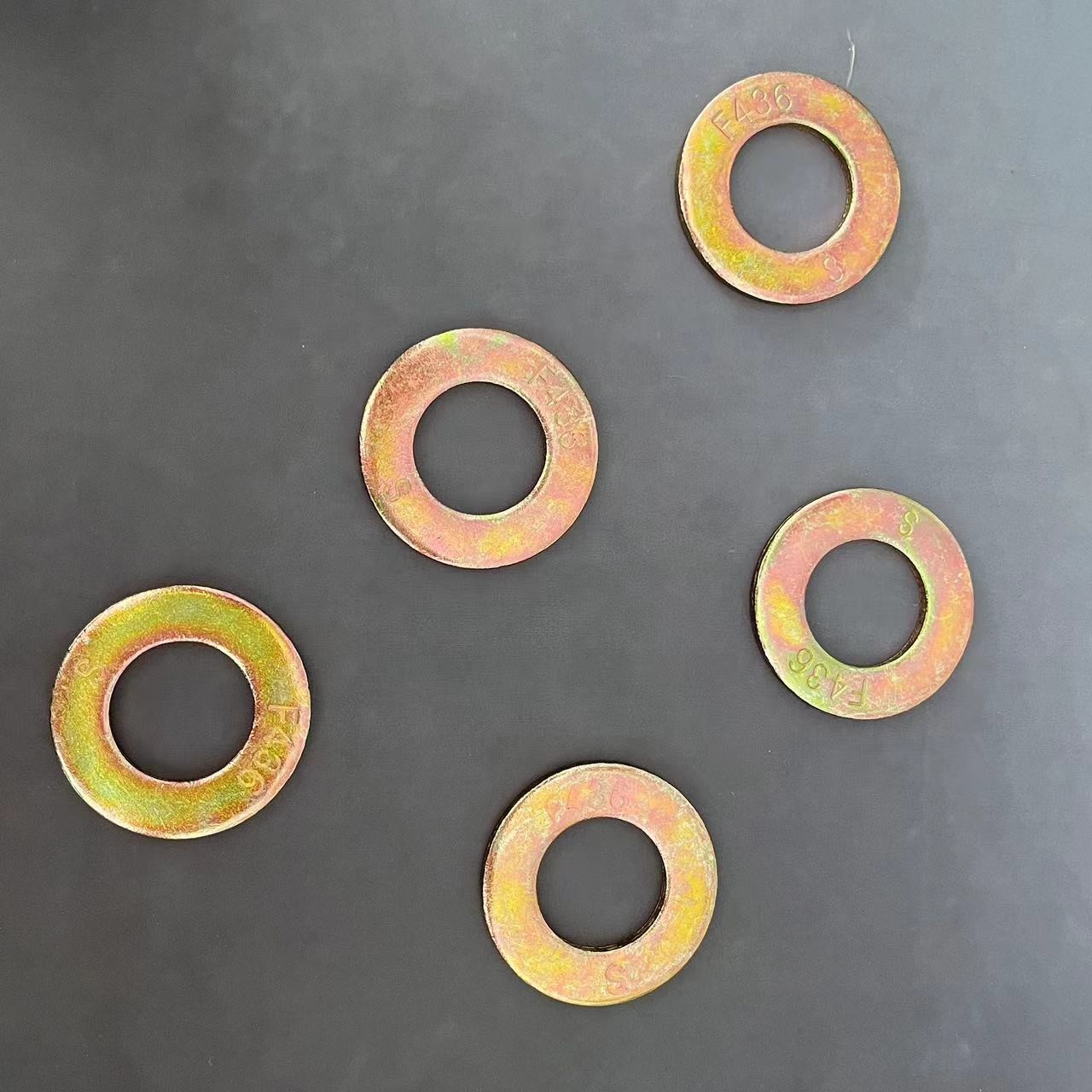

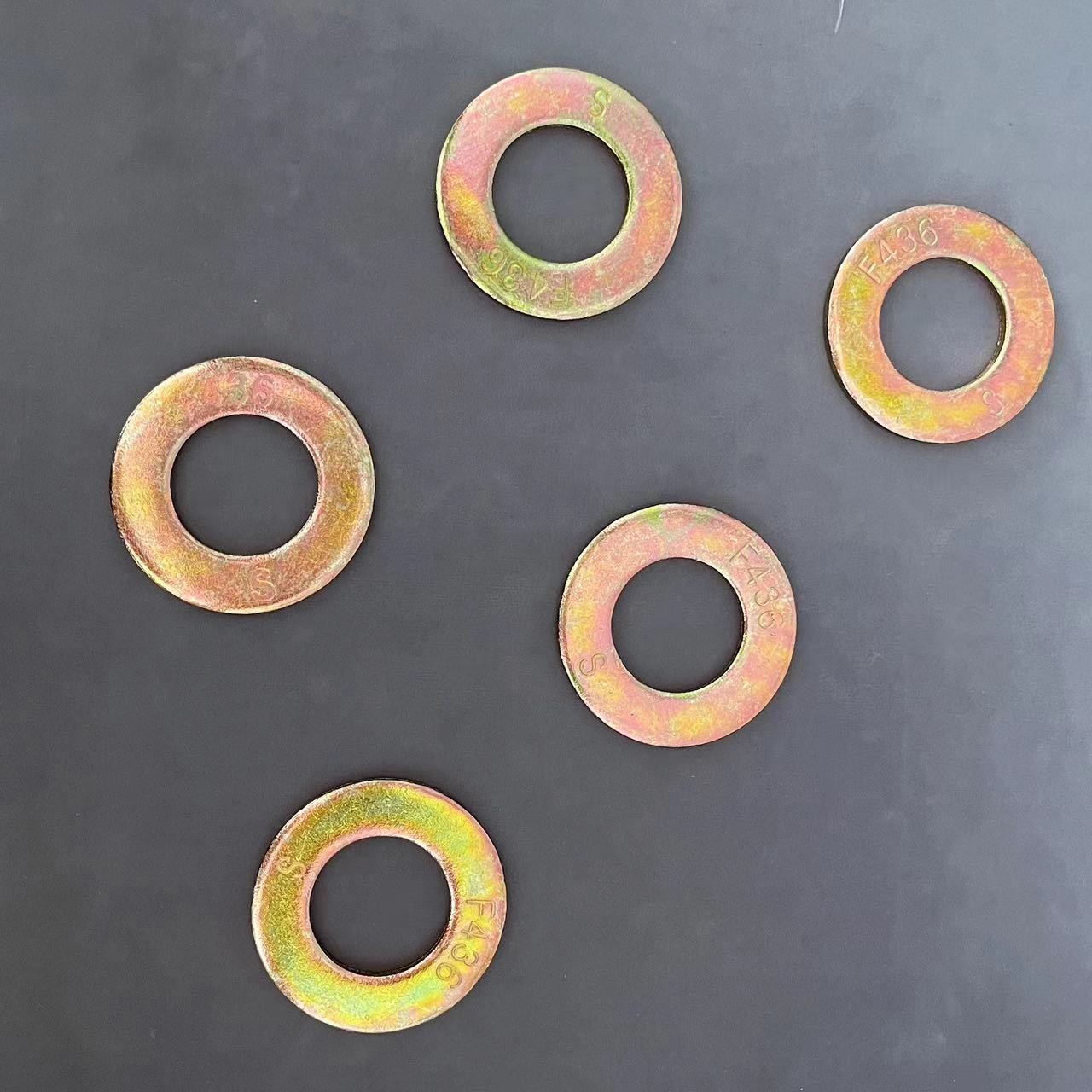

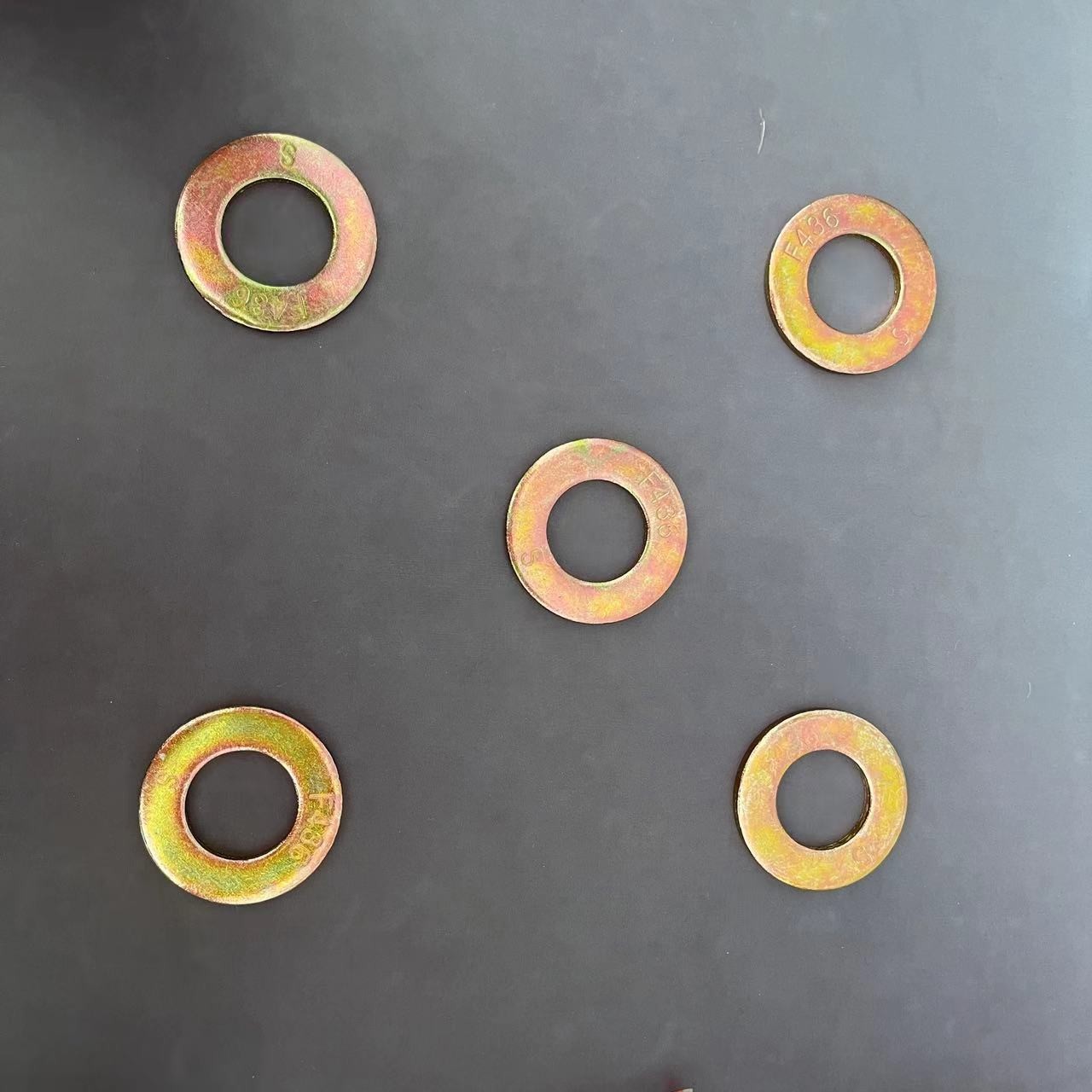

Products pictures for Flat washers
