F436M Washer/Non Standard Washer, Plain/Dacromet/Black Oxide/Zinc plated/HDG

Brand Name : YNK

Model Number : F436M

Certification : ISO9001；ISO14001;ISO45001;CE

Place of Origin : China

MOQ : One Pallet For One Size

Payment Terms : T/T

Supply Ability : 50T For 1 day

Packaging Details : Pallet

Name : F436M Washer/Non Standard Washer

Material : S45C/40CR

Size : M12-M100

Finish : Plain/black/ZINC/HDG/Dacromet

Standard : F436M

Hardness : HV300/HRC35-45

Application : Construction, Bridges, machinery and automobile manufacturing

Contact Now

Standard:F436M

Description:

The F436M washer is a modified version of the F436 washer that is specifically designed for metric-sized applications. It is commonly used in structural and industrial settings.

Similar to the F436 washer, non-standard washers with finishes such as plain, Dacromet, black oxide, zinc plated, or HDG can be obtained through custom manufacturing. Non-standard washers are typically made to order based on specific requirements.You can contact us to inquire about non-standard washers with your desired finishes.
When communicating with us, provide us with detailed specifications including the dimensions, material, finish, and quantity of the washers you need. We will be able to assist you in creating the non-standard washers with the desired finishes you are looking for.

Material	45#/40CR
Size	M12-M100
Finish	Plain/black/ZINC/HDG/Dacromet/Mechanical Galvanized
Hardness	HV300/HRC35-45
Marking	can be Customized
Application	Constrution/Wind turbines/railway line
Packing	Carton+ pallet; we can pack washers as your requirements
Terms	FOB+shanghai/ningbo
Delivery time	30-70days

Size	Inner diameter(max)	Inner diameter(min)	Outside diameter(max)	Outside diameter(min)	Thickness (max)	Thickness (min)
M12	14.4	14.0	27.0	25.7	4.6	3.1
M14	16.4	16.0	30.0	28.7	4.6	3.1
M16	18.4	18.0	34.0	32.4	4.6	3.1
M20	22.5	22.0	42.0	40.4	4.6	3.1
M22	24.5	24.0	44.0	42.4	4.6	3.4
M24	26.5	26.0	50.5	48.4	4.6	3.4
M27	30.5	30.0	56.0	54.1	4.6	3.4
M30	33.6	33.0	60.0	58.1	4.6	3.4
M36	39.6	39.0	72.0	70.1	4.6	3.4
M42	45.6	45.0	84.0	81.8	7.2	4.6
M48	52.7	52.0	95.0	92.8	7.2	4.6
M56	62.7	62.0	107.0	104.8	8.7	6.1
M64	70.7	70.0	118.0	115.8	8.7	6.1
M72	78.7	78.0	130.0	127.5	8.7	6.1
M80	86.9	86.0	142.0	139.5	8.7	6.1
M90	96.9	96.0	159.0	156.5	8.7	6.1
M100	107.9	107.0	176.0	173.5	8.7	6.1

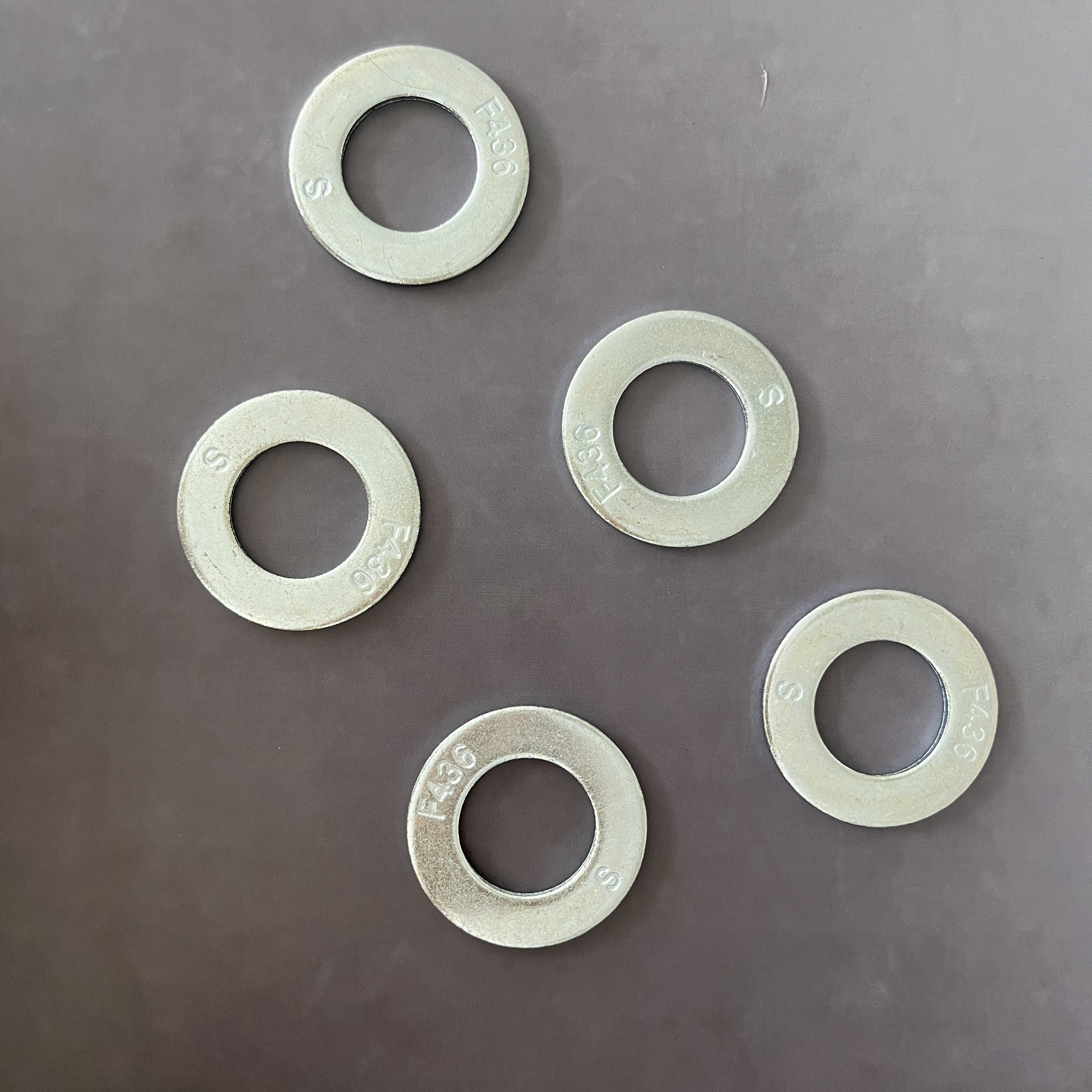

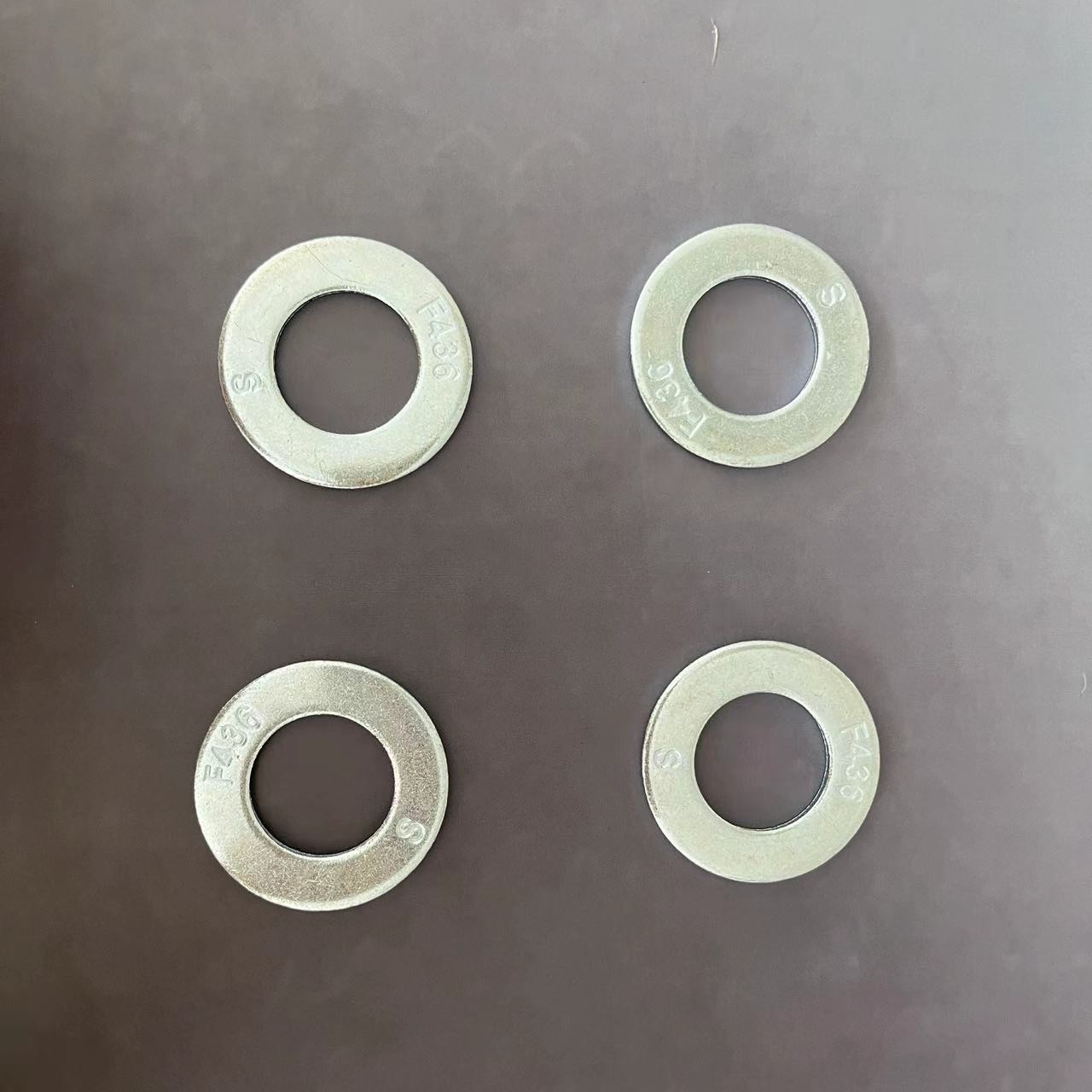

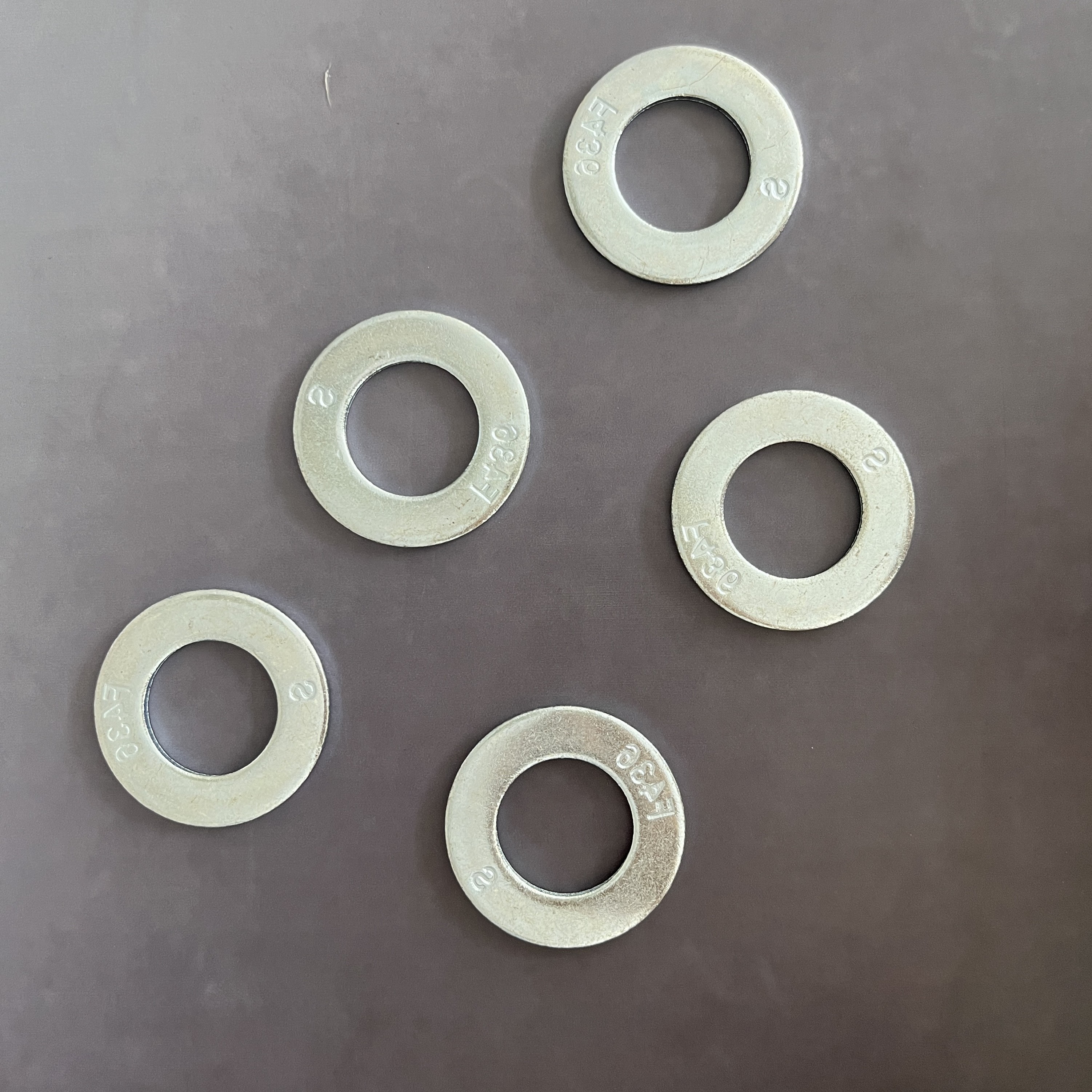

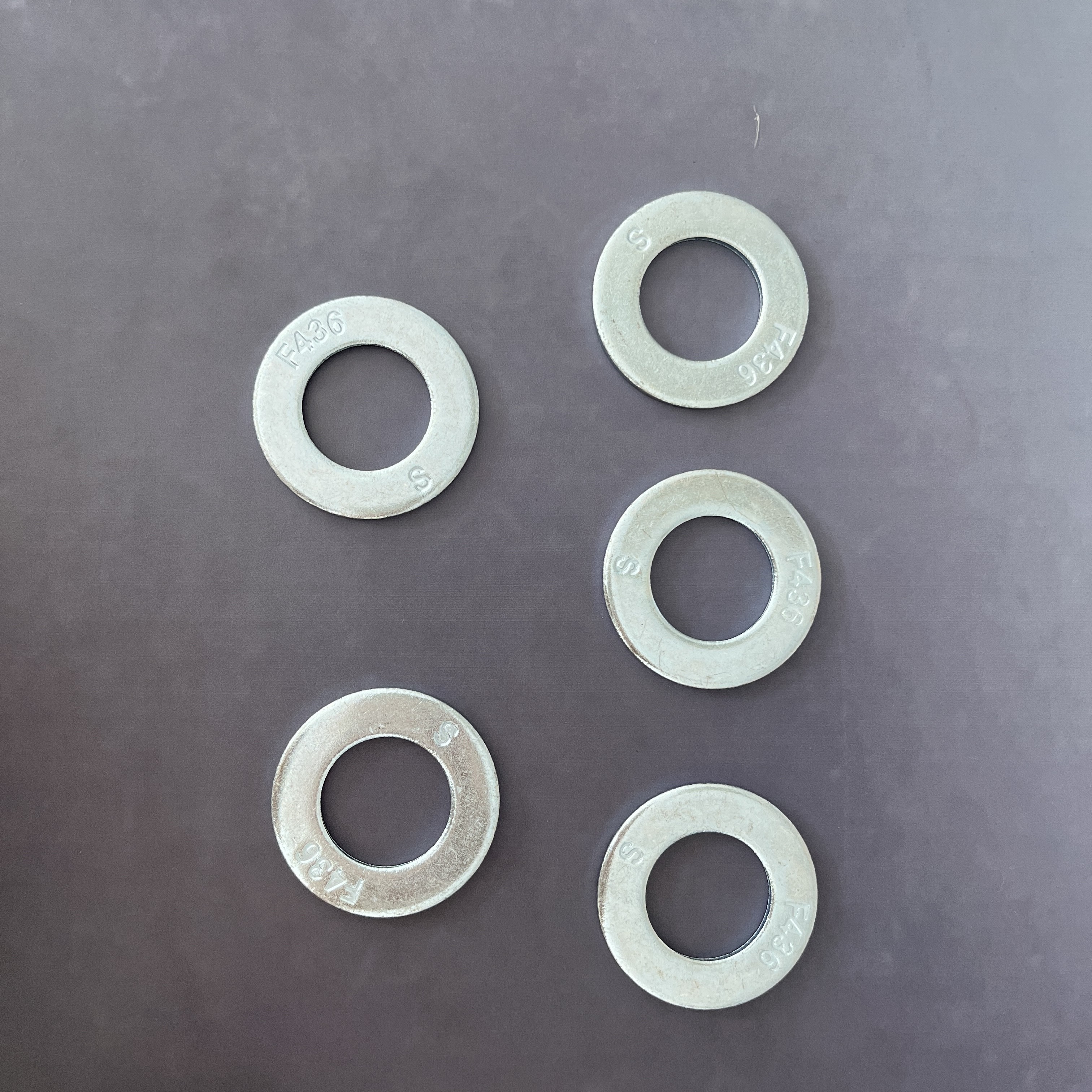

Products pictures for Flat washers

F436M Washer/Non Standard Washer, Plain/Dacromet/Black Oxide/Zinc plated/HDG

F436M Washer/Non Standard Washer, Plain/Dacromet/Black Oxide/Zinc plated/HDG Images
