EN14399-6 Washer/Flat Steel Washer, M12-M36, Dacromet

Brand Name : YNK

Model Number : EN14399-6

Certification : ISO9001；ISO14001;ISO45001;CE

Place of Origin : China

MOQ : One Pallet For One Size

Payment Terms : T/T

Supply Ability : 50T For 1 day

Packaging Details : Pallet

Name : EN14399-6 washer/Flat washer

Material : S45C/40CR

Size : M12-M36

Finish : Plain/Black/ZINC/HDG/Dacromet

Standard : EN14399-6

Hardness : HV300/HRC35-45

Application : Construction, Bridges, machinery and automobile manufacturing

Contact Now

Standard:EN14399-6
Description:

The EN14399-6 washer, also known as a flat steel washer, is a type of washer that conforms to the European standard EN 14399-6. This standard specifies the requirements for high-strength structural washers used in conjunction with high-strength bolts and nuts.

Dacromet is a specific type of coating that is sometimes used as a finish option for washers, including those conforming to the EN14399-6 standard. Dacromet is a proprietary coating that provides excellent corrosion resistance, high-temperature resistance, and durability.

When a washer is coated with Dacromet, it undergoes a process where a thin layer of Dacromet coating is applied to the surface. This coating forms a protective barrier that helps prevent corrosion and provides additional protection against environmental factors.

Material	45#/40CR
Size	M12-M36
Finish	Plain/black/ZINC/HDG/Dacromet/Mechanical Galvanized
Hardness	HV300/HRC35-45
Marking	can be Customized
Application	Constrution/Wind turbines/railway line
Packing	Carton+ pallet; we can pack washers as your requirements
Terms	FOB+shanghai/ningbo
Delivery time	30-70days

Size	Inner diameter (min)	Inner diameter (max)	Outside diameter (max)	Outside diameter (min)	Thickness (nominal size)	Thickness (max)	Thickness (min)	Inside chamfer (min)	Inside chamfer (max)	External chamfer
M12	13	13.27	24	23.48	3	3.3	2.7	1.6	1.9	0.5
M16	17	17.27	30	29.48	4	4.3	3.7	1.6	1.9	1
M20	21	21.33	37	36.38	4	4.3	3.7	2	2.5	1
M22	23	23.33	39	38.38	4	4.3	3.7	2	2.5	1
M24	25	25.33	44	43.38	4	4.3	3.7	2	2.5	1
M27	28	28.52	50	49	5	5.6	4.4	2.5	3	1
M30	31	31.62	56	54.8	5	5.6	4.4	2.5	3	1
M36	37	37.62	66	64.8	6	6.6	5.4	3	3.5	1.5

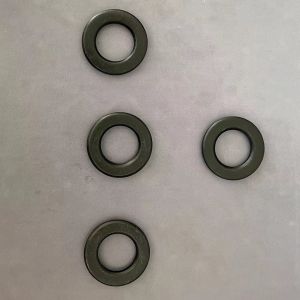

Products pictures for Flat washers

EN14399-6 Washer/Flat Steel Washer, M12-M36, Dacromet
